Want to know how we build a commercial-grade drop stitch pool? It starts with thousands of internal polyester threads. We bond them between two tough PVC fabric panels. Next, we seal the joints using high-frequency (HF) welding. This creates a rock-solid, pressure-stable pool wall. We then inflate it to 8–15 PSI. The whole process takes eight strict production steps. We handle everything from CAD design to a 48-hour pressure test. Our factory fully meets ISO and CE export standards. This guide covers everything you need to know for B2B sourcing. 🏊
🔑 Quick Look: The 8 Production Steps:
- Step 1: 2D CAD drawings and 3D styling design.
- Step 2: Choosing fabric thickness (10 cm to 40 cm options).
- Step 3: CNC auto-cutting to keep precision within ±1 mm.
- Step 4: High-frequency molecular welding at 120–180°C.
- Step 5: Valve assembly and custom accessory fitting.
- Step 6: Full 24 to 48-hour inflation retention test.
- Step 7: Strict three-stage QC checking (EN ISO 25649 standard).
- Step 8: Private label logo printing and ocean shipping prep.
📑 Table of Contents
- Why Choose a Custom Drop Stitch Inflatable Pool?
- What Is Drop Stitch Technology?
- Step-by-Step Custom Drop Stitch Inflatable Pool Production Process
- Quality Control Standards in Drop Stitch Inflatable Pool Manufacturing
- Custom Branding & OEM/ODM Services
- Real-World Custom Inflatable Pool Projects & Client Cases
- Frequently Asked Questions
Why Choose a Custom Drop Stitch Inflatable Pool? 🌊
Rock-Solid Walls vs Standard Inflatables
Why do commercial buyers choose custom drop stitch inflatable pools? The biggest reason is structural strength. Look at the numbers. Normal inflatable pool walls warp up to 30 mm under water pressure. Our drop stitch walls stay flat. They warp less than 5 mm. This means you get a rigid, stable pool structure. It holds massive water loads and users can sit on the walls. Plus, you do not have to assemble complex metal frames. If you are comparing a drop stitch inflatable pool vs traditional inflatable pool setups, the choice is clear for commercial use.
| Feature | Drop Stitch Inflatable Pool | Traditional Inflatable | Steel Frame Pool |
|---|---|---|---|
| Wall Flex | Under 5 mm (Very rigid) | Over 30 mm (Soft) | Zero flex (Metal bar) |
| Air Pressure | 8–15 PSI | 1–3 PSI | N/A |
| Setup Time | 15–30 mins | 10–20 mins | 60–120 mins |
| Box Volume | Ultra compact (~1 m³) | Small | Large and heavy |
| Shape Options | 100% Custom designs | Very limited | Fixed catalog sizes only |
Where These Pools Are Used 🏨
Data from the International Association of Amusement Parks and Attractions (IAAPA) shows a big trend. The global water leisure market wants portable but tough setups. Drop stitch swimming pools fit this gap perfectly. They are rigid when full, but pack down small when empty. Check out our deep-dive report on commercial drop stitch inflatable pool applications to see how different business sectors use them:
- 🏖️ Resorts & Premium Hotels: Set up seasonal pool zones instantly without digging the ground.
- 🎪 Event Rental Companies: Quick setup and teardown for high-frequency party rentals.
- 🌊 Water Parks: Add extra kids' play areas or shallow water splash pads quickly.
- 🧊 Cold Plunge Fitness Brands: Branded ice recovery tubs with precise depth choices.
- ⚽ Pro Sports Clubs: Portable recovery stations and therapy pools for athletes.
- 🛒 Wholesale Distributors: Ready-to-sell private label stock for domestic retail channels.
What Is Drop Stitch Technology? 🧵
How the Material Works
The secret is inside the wall. Drop stitch fabric uses two parallel PVC layers. Inside, tens of thousands of tough polyester threads connect them. We call this the vertical matrix. When you pump in air, these threads pull tight. They stop the pool from bulging. The top and bottom surfaces stay completely flat and level. For the raw engineering basics, you can check out the drop stitch fabric structure on Wikipedia. Or read our own full guide on drop stitch technology.
As a professional Drop Stitch Pool Manufacturer, we offer five main wall thickness options: 10 cm, 15 cm, 20 cm, 30 cm, and 40 cm. Your choice depends on your pool size, depth needs, and your target budget.
Perfect for Massive Pools 📐
Do you need a pool larger than 6 m² or deeper than 60 cm? Normal single-layer PVC rings will buckle under water weight. Drop stitch fixes this. It keeps its shape under heavy water pressure. It easily handles lateral loads when people lean against it. Even after hundreds of inflation cycles, the pool walls do not stretch out. Our factory units hold full pressure for over 72 hours without leaking or losing their shape. Traditional PVC pools simply cannot do this.
Step-by-Step Custom Drop Stitch Inflatable Pool Production Process ⚙️
Step 1: Product Design & CAD Engineering
We start every project with a clear design plan. You choose the length, width, height, and overall shape. We handle standard shapes like round, rectangle, and oval, or fully custom geometries. Our engineering team builds 2D CAD technical blueprints and 3D realistic renderings. We send these to you for approval before cutting any fabric. Our target factory tolerance is within a tight ±2%.

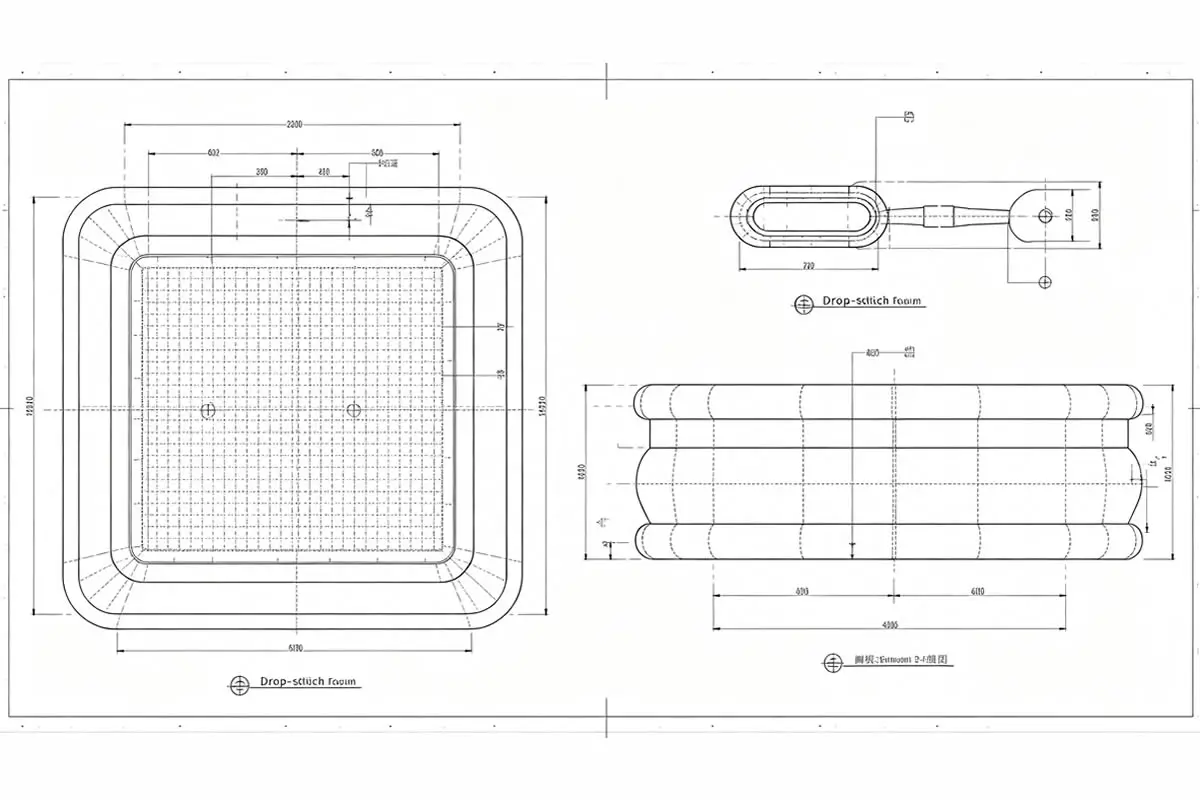

We create accurate 2D and 3D CAD blueprints for your custom OEM inflatable pool before production starts.
Step 2: Material Selection 🧪
Picking the right fabric determines the lifespan and pressure limits of your pool. Here is a quick reference guide to our drop stitch fabric specs:
| Wall Thickness | Max Air Pressure | Best Match Application | Unit Weight |
|---|---|---|---|
| 10 cm | 10 PSI | Kids wading pools, compact ice bath units | Lightweight |
| 15 cm | 12 PSI | Home backyards, light commercial use | Medium-light |
| 20 cm | 13 PSI | Event rentals, seasonal hotel pop-ups | Standard weight |
| 30 cm | 14 PSI | Large public swim pools, theme water parks | Heavy-duty |
| 40 cm | 15 PSI | Deep luxury resort installations, large-scale setups | Maximum weight |
We offer three key PVC coatings: Standard PVC, Heavy-duty PVC, and UV-resistant PVC. For air valves, we use top-tier options like the Bravo Valve or Halkey Roberts Valve to ensure zero leaks under high pressure.
Step 3: CNC Cutting & Reinforcement Preparation ✂️
We do not cut fabric by hand. Instead, we use high-end automated CNC cutting machines. This keeps our cutting precision within ±1 mm. This automated step cuts down material waste by 15–20%. It also ensures every batch matches your specs perfectly. After cutting, we reinforce high-stress areas like corners, D-ring anchors, handles, and valve seats with double-layer PVC patches.
Step 4: High-Frequency Welding Process 🔧
To fuse the PVC fabric, we use high-frequency (HF) welding. This process melts the material surfaces together at a molecular level. It does not use cheap glue. We carefully control the welding temperature between 120–180°C. Our team does double-pass welding on vital stress points, including sidewall joints and corner seams, to prevent blowouts.

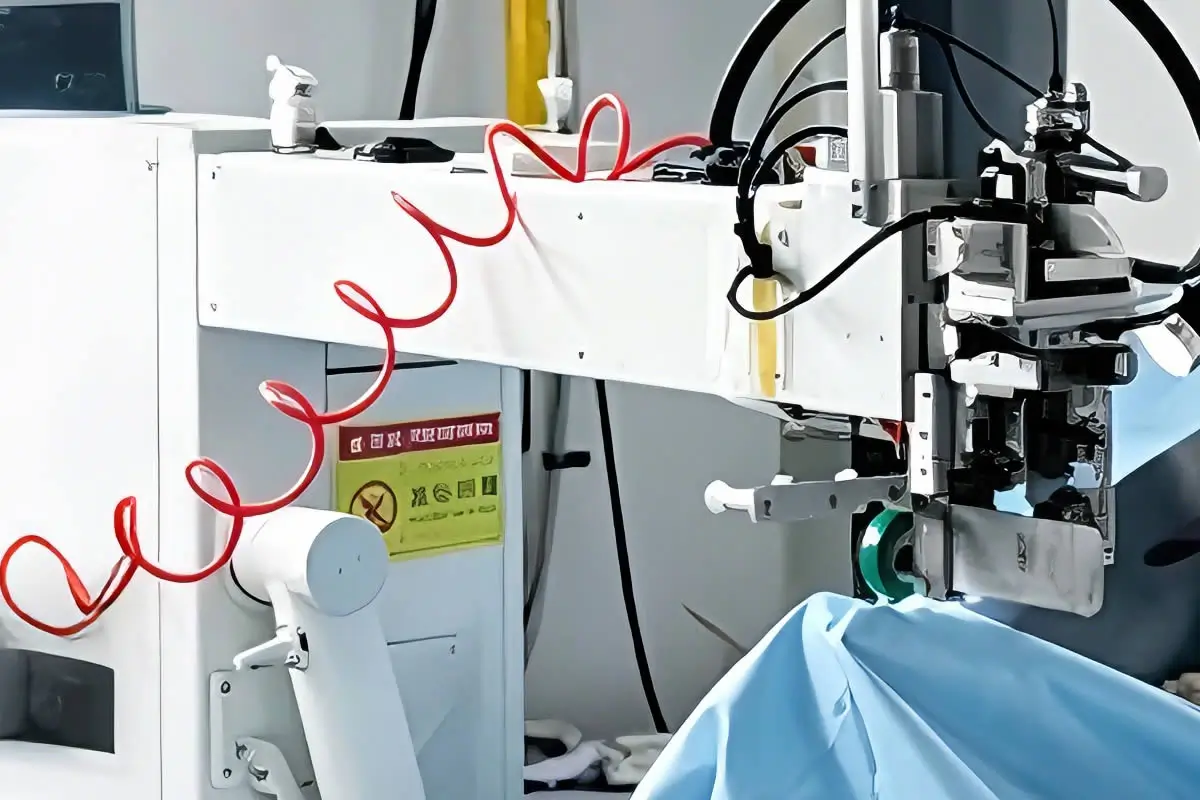

High frequency welding station producing structural seams for custom drop stitch inflatable pool sidewall and base connections
🏭 Real Story From Our Production Floor
In 2025, an event rental client gave us some helpful field data. They relocated their drop stitch inflatable pools 2 to 3 times every week for summer parties. After a month of heavy use, they noticed light friction wear on the bottom edges. This happened from dragging the pools over concrete during quick setups, not from water pressure failures.
Our engineering team took action immediately. We upgraded our standard pool design by adding an extra anti-abrasion PVC armor strip along the bottom perimeter. We also added a double-pass HF weld band on the bottom-to-wall seam. Finally, we shipped them custom protective storage bags. The updated pools completed over 30 event setups without a single scuff. For heavy-use rental companies, real durability is all about handling wear, and we design to fix those exact issues.
Step 5: Pool Assembly & Component Integration 🔩
Next, our assembly team lines up the sidewalls and joins them to the base panel. We inspect every inch of the weld by hand. We install air valves using digital torque wrenches so they do not crush the internal threads. We also add any extra custom items you ordered, such as stainless steel ladders, drain outlets, filter pump connectors, or custom protective covers.
Step 6: Inflation & Pressure Testing 💨
Every single pool goes through our testing zone. We inflate the units to full pressure for a 24-hour air test. For commercial buyers and export orders, we extend this to a 48-hour pressure decay test. We track the pressure numbers every 6 hours. For large pools over 3 meters wide or 20 m² in area, we do a real-world water load test to monitor wall stability. Our leak standards match the strict EN ISO 25649 guidelines.

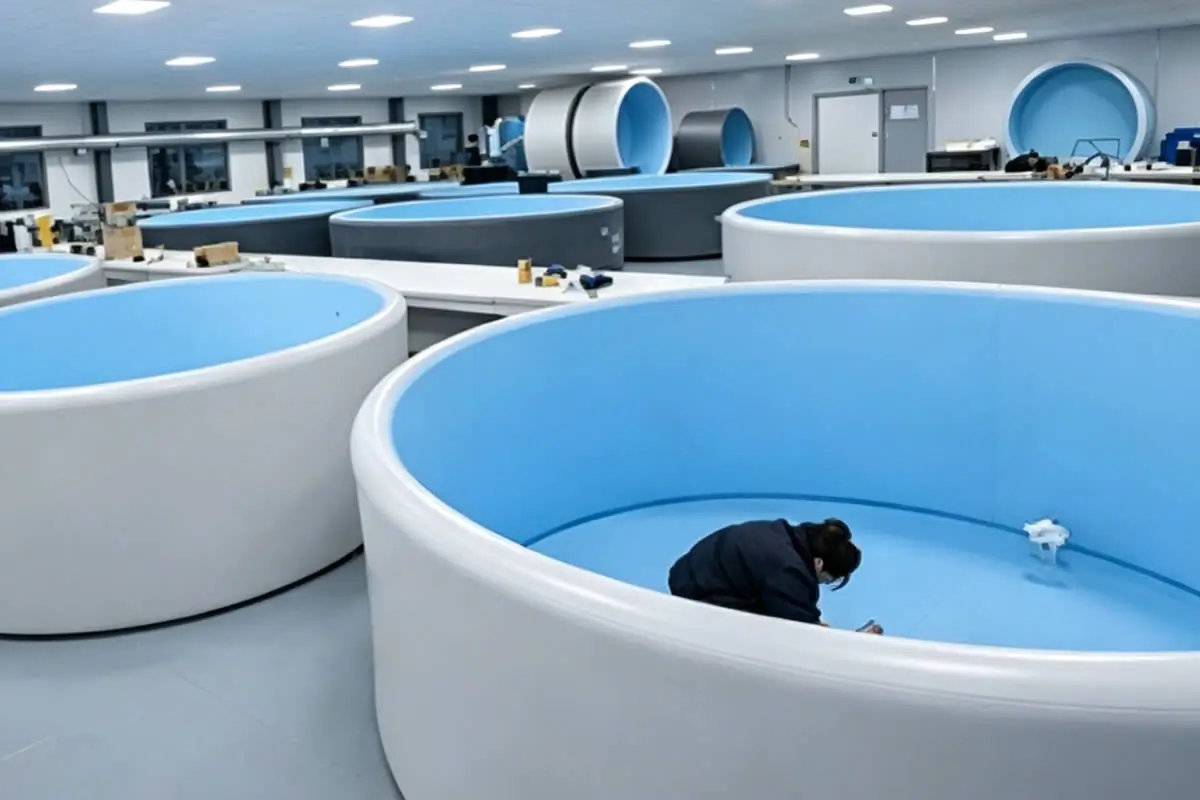

Quality Control Standards in Drop Stitch Inflatable Pool Manufacturing 🔍
Three-Stage Inspection System
We track quality at every single step of production. Every production batch has full records for international trade traceability:
- 📥 Material Check: We test every incoming roll of drop stitch fabric. We verify raw fabric thickness, thread counts, tensile strength, and cold-cracking resistance.
- 🔄 In-Process Check: We test welding strength continuously during production. Our team cuts raw fabric samples from your batch and pulls them apart on a test rig to check seam strength.
- ✅ Final Product Check: We do a full 48-hour air check, verify final dimensions, and inspect print colors and logo registration before packing.
Every custom drop stitch inflatable pool must clear our 48-hour pressure holding test before moving to the packing zone.
International Certifications 📋
We build our export pools to pass the strict EN ISO 25649 standard. This is the main safety and quality benchmark for inflatable water gear. We provide full CE and UKCA certificates for European and British buyers. If you need third-party lab testing through SGS or TÜV, we can arrange that for you. This helps you clear customs smoothly in the US, Australia, and the Middle East.
Custom Branding & OEM/ODM Services 🎨
Your Custom Logo and Colors
We offer full private label branding options. We use heavy-duty digital printing or screen printing to stamp your logo onto the PVC walls. Both methods resist UV rays and pool chemicals. We match colors exactly using the Pantone Color System. For retail brands, we offer full-color master boxes, custom manuals, barcode labels, and hang tags. This means you can ship items straight to your retail shelves or Amazon warehouses.
OEM vs ODM: Which Fits Your Business? ⚖️
| Sourcing Factor | OEM Manufacturing | ODM Manufacturing |
|---|---|---|
| Who Designs It? | You give us blueprints and dimensions | Our factory engineers design it for you |
| IP Ownership | 100% Yours | Shared or licensed to your brand |
| Sample Lead Time | 15–30 Days | 25–45 Days |
| Standard MOQ | 10–20 Units | Depends on design complexity |
If you want to look at our factory setups, tooling machinery, and global export track record, check out our full inflatable pool manufacturer in China web page.

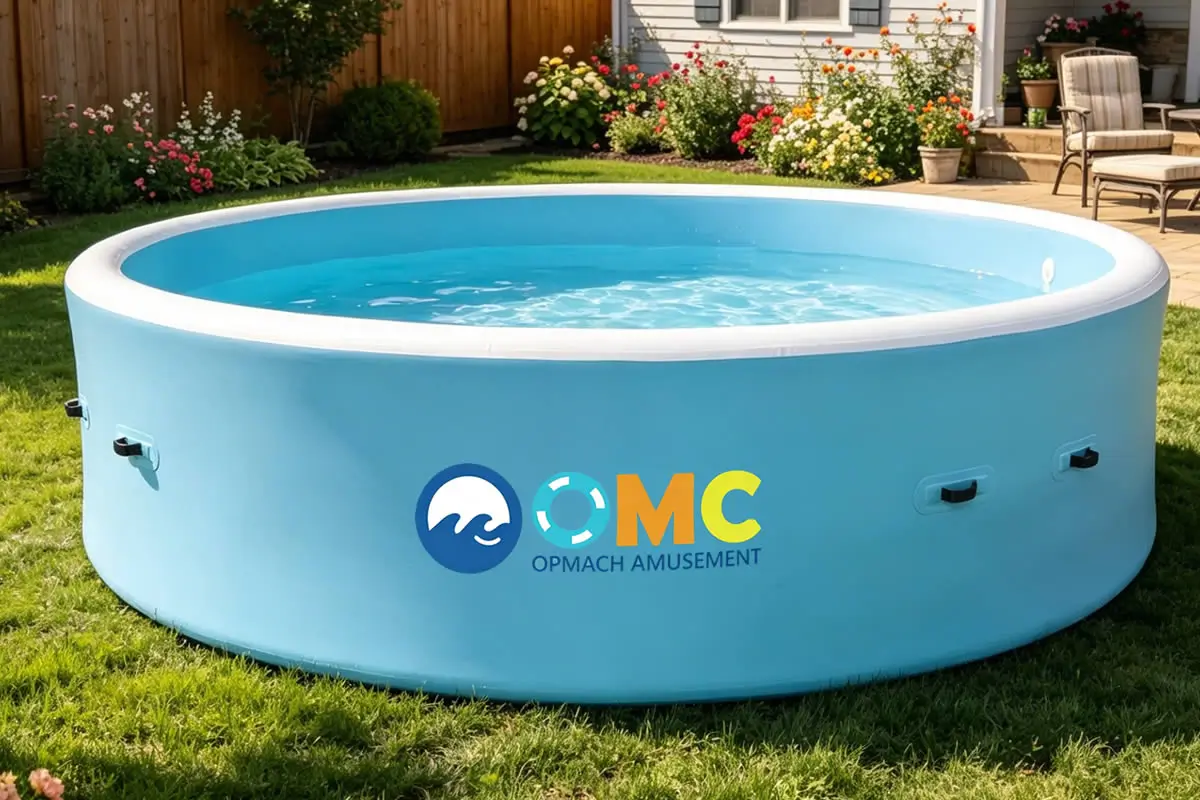

We offer retail-ready packaging box printing and private label branding options for global buyers.
Smart Packing Saves Freight Costs 🌐
Drop stitch fabric deflates and rolls up incredibly tight. We vacuum-pack each pool to a compact 1:8 ratio compared to its inflated size. This means we can load far more units into a single 40 HQ container than old-school steel frame pools. This significantly lowers your ocean freight cost per unit. We provide full trade paperwork including CE Declarations, packing lists, and Certificates of Origin. We ship via sea, air, or express courier depending on your deadline.
Real-World Custom Inflatable Pool Projects & Client Cases 📊
2025 Summer Success with Drop-Stitch Inflatable Pools 🎪
In summer 2025, we partnered with a long-term wholesale client. They specialize in outdoor amusement gear. Our mission was simple: optimize their product design and secure a rock-solid supply chain.
They kicked off the season by ordering our rectangular drop-stitch inflatable pools. These units went straight to their retail network and on-site event vendors.
We supplied two core models. Once they hit the market, both sizes sold incredibly fast.
| Pool Size | Primary Uses | Business Impact |
|---|---|---|
| 4m × 2m × 0.5m | Balconies, small yards, fish-scooping games, ring toss. | Fast inventory turnover. Quick ROI for end-users. |
| 5m × 3m × 0.67m | Shopping malls, property promotions, rural leisure parks. | Steady sales. Perfect for family-friendly events. |
By the end of the season, retail sales jumped by 40% compared to the client's older PVC soft-wall pools.
Why did they sell so well? It comes down to drop-stitch technology. These pools stay completely rigid. They do not bulge or warp when filled with water. This gives them a premium look and makes them far safer.
They also beat traditional metal-frame pools in logistics. The inflatable design packs down small. You can set them up in minutes. For the end user, this means lower shipping fees and slashed labor costs.
The summer season was a clear win. The client has already placed a repeat order. Next up? They are sizing up. They plan to order even larger pools to target major seasonal festivals and big commercial events.
Cold Plunge Brand OEM Project 🧊
An e-commerce wellness brand wanted a custom ice bath pool. They required a precise wall height of 80 cm, full outdoor UV protection, and retail shipping boxes. We designed a custom 20 cm thick wall pool with UV-resistant PVC and high-volume Halkey Roberts valves for quick drainage. The pools passed a 48-hour cold immersion test at 4°C before final shipment.
Luxury Resort Hotel Expansion 🏨
A premium resort needed extra swimming capacity for the peak summer rush. They ordered a large rectangular 8 m × 4 m × 0.67 m drop stitch inflatable pool. It sat outdoors for an 8-month season and handled up to 15 guests swimming at once. We built it using our thickest 30 cm drop stitch fabric, added integrated pump filter connectors, and applied an anti-slip grip layer to the inner floor. The pool ran all season with zero air loss or maintenance needs.
Frequently Asked Questions ❓
The Bottom Line: Choosing the Right Factory Partner
Building a custom drop stitch inflatable pool takes real manufacturing expertise. Working directly with an experienced source factory instead of a trading broker gives you real engineering support, better quality testing, and lower per-unit costs.
OMC Amusement delivers full-service OEM and ODM manufacturing for drop stitch inflatable pools. We have over 18 years of direct factory experience and export to more than 40 countries. We handle every step in our own facility, from initial 3D drawings to CE testing and custom box printing. This keeps your quality high and your order on time. 🌍
Whether you want to launch a private label pool line or scale your commercial rental inventory, our team is here to help you build it.
📩 Ready to launch your pool project? Email our OEM sales team today. Ask for a free material sample pack or get a fast production quote. We reply to all commercial inquiries within 24 hours.
🏭 Factory Scale: 18+ years experience | Factory-direct OEM/ODM | Sourcing to 40+ countries
📦 B2B MOQ: From 10 units | Flexible sample runs | Full sea, air, and door-to-door express freight
🌟 OMC Amusement makes high-pressure inflatables for global B2B brands. Buy direct from our factory to get wholesale pricing with zero middleman fees. We deliver most custom orders in 15 to 40 days with a proven 99.8% quality pass rate.
