How Strong Is a Drop Stitch Inflatable Pool?

B2B buyers ask us the same thing: how strong is a drop stitch inflatable pool, really? Fair question. Most inflatable pools earn their bad reputation — thin vinyl, soft walls, seams that give up by the second season. They're fine for a backyard. They're a liability at a commercial venue.

A drop stitch inflatable pool is built differently at the material level. The walls don't stretch. They don't balloon. Under pressure, they act like a solid panel. Here's exactly how that works — and what to check before you source one.

It starts inside the wall. Forget the outer skin for a moment. The real story is what's between the two PVC layers: thousands of individual polyester threads, each one anchored top-to-bottom. When you pump air in, those threads go taut. They don't let the walls bulge out. They hold them flat — like a tensioned cable system, not a balloon.

That's the core of drop stitch technology. Pressure becomes rigidity, not inflation. Any load you put on the wall — a sitting adult, a leaning child, a wave of water — gets spread across that entire fiber network instantly.

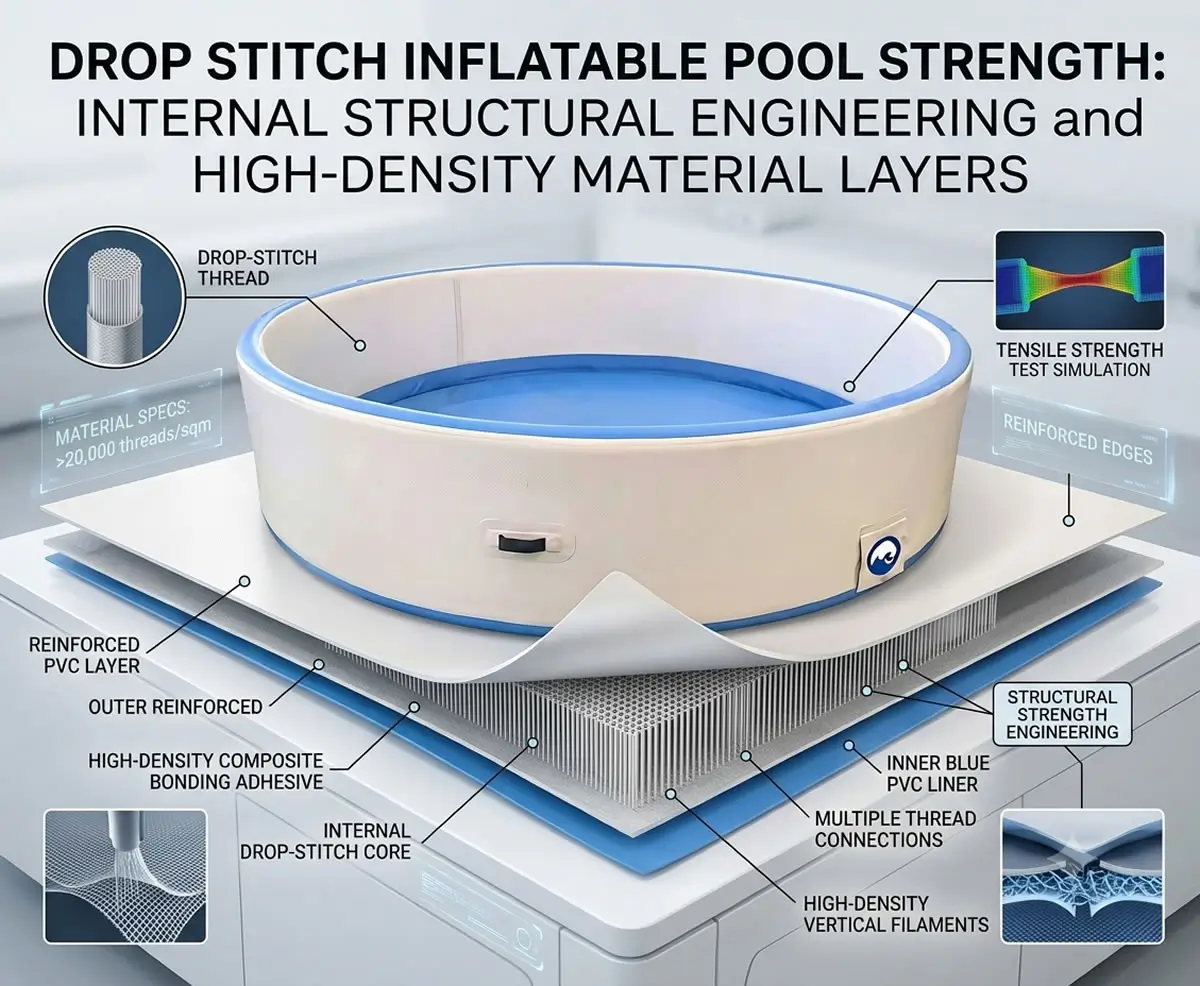

🖼️ Technical Diagram: Internal Layer Composition

The outer shell handles the environment. Commercial-grade pools use 1000D–1500D PVC with a wall thickness of 0.6mm–1.2mm. UV stabilizers are baked into the compound — not sprayed on. The material meets ASTM D751 for coated fabrics and complies with REACH regulations. Chlorine won't eat through it. Direct sun won't crack it.

Here's the core problem with a traditional inflatable pool: fill it with water, and the walls push out. The more water, the more they bulge. Effective depth drops. Over-topping becomes a real risk. And the seams — glued, not welded — start taking the hit.

A drop stitch pool handles hydrostatic pressure differently. The vertical thread matrix pushes back. Walls stay straight. Depth stays consistent. That's not a small difference — it's the entire reason commercial operators switched.

Lifespan tells the same story. Glued seams on a traditional pool crack within one or two seasons. Machine-welded drop stitch pools routinely run 5–10 years outdoors. Compare that to fiberglass: similar rigidity, but requires excavation, a crane, and permanent installation. Drop stitch ships flat. Sets up in under 15 minutes. Packs down just as fast.

PSI is what separates a rigid commercial pool from a soft backyard toy. Run a drop stitch pool below 8 PSI and the threads go slack. The walls flex. Load capacity drops. Run it between 8 and 15 PSI, and the internal fiber matrix locks tight — the wall acts like a solid beam.

What about summer heat? Hot sun raises internal pressure naturally. That's why industrial-grade pools are built with a 3:1 safety factor. Recommended daily use sits at 8–12 PSI. The material can handle up to 25–30 PSI before any seam stress occurs. On top of that, an automatic relief valve bleeds excess pressure before it ever becomes a problem.

Every pool we ship goes through a 48-hour continuous pressure hold test. We inflate to 12–15 PSI and watch the readings on calibrated digital manometers. Any unit that drops more than 0.15 PSI over 48 hours gets pulled. No exceptions.

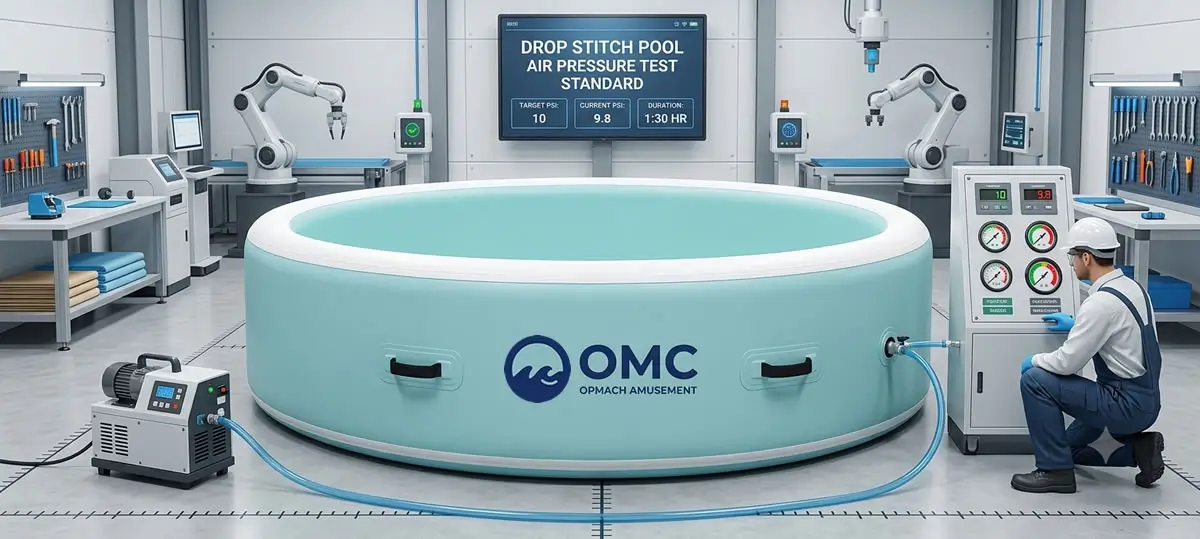

🖼️ Quality Control: Factory Pressure Testing Line

Beyond that, our inflatable pool factory runs three more validation stages. Hydraulic rams cycle thousands of compression loads against the walls — simulating years of commercial edge use in days. Material samples get baked at +60°C and frozen at -20°C, then checked for cracking or delamination. Salt-spray chambers test corrosion resistance for marine and tropical resort deployments. If a material batch fails any stage, it doesn't reach production.

Resorts and boutique hotels use drop stitch pools to add water features fast — no permits, no excavation, no off-season storage headache. A commercial grade inflatable pool for resort use sits cleanly on a timber deck, an eco-beach, or an overwater villa platform. Because adults can sit on the walls without risk, guests treat it like a proper pool. It comes down at the end of the season, packs into a bag, and goes back up next year.

Rental and event operators care about one thing above all: how many cycles they can get out of a unit. The answer here is hundreds. A pump inflates the pool in under 15 minutes. Deflation takes about the same. It rolls into a compact pack that fits in a van — no flatbed, no crane hire. That's what makes the per-deployment economics work.

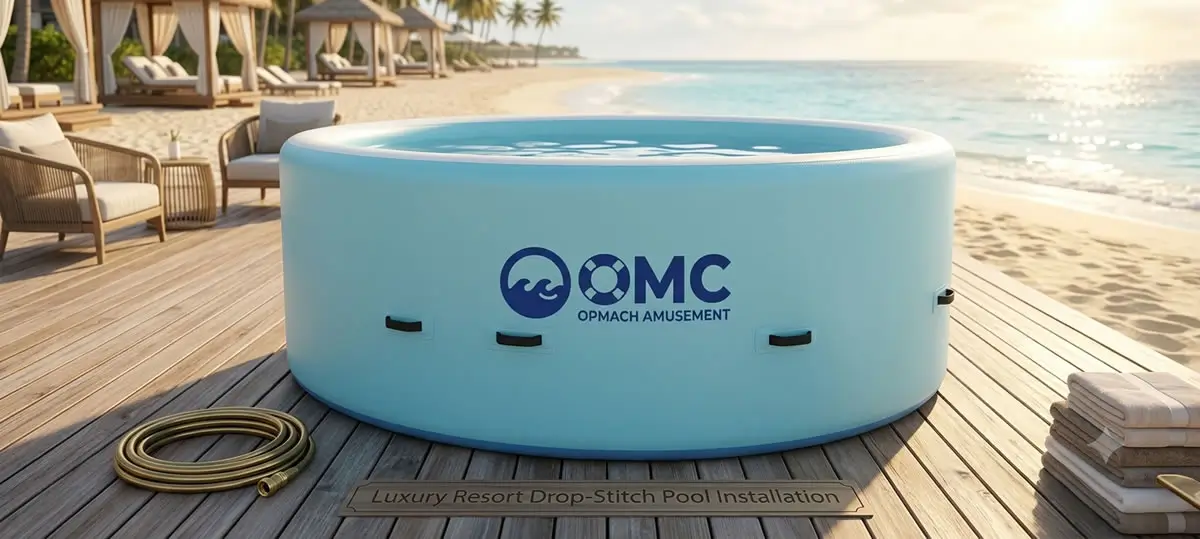

🖼️ Commercial Application: Luxury Resort Beachfront Deployment

The use cases keep expanding. Explore commercial drop stitch pool applications and you'll find 10–12 ft units running as cold-plunge stations at fitness retreats, modular swim enclosures on superyacht platforms, and wellness pools at international sporting events. High rigidity opens doors that a soft-wall inflatable simply can't.

Start with the seam. Cheaper suppliers glue their seams by hand. Pool chemicals break down adhesive. Heat does, too. Within a season or two, those seams split. A proper heavy duty inflatable pool manufacturer uses computer-controlled Heat Welding — the PVC layers fuse at the molecular level. There's no adhesive to degrade. The bond is part of the material itself.

Working directly with a vertically integrated industrial-grade PVC inflatable pool manufacturer in China also gives you real OEM/ODM control. Custom wall heights, branded logos, specific multi-chamber layouts — those options only exist when the manufacturer owns the full process, from raw material to finished unit.

So — how strong is a drop stitch inflatable pool? Strong enough that the question of "will it hold" stops being a concern. At 8–15 PSI, the fiber matrix locks the walls rigid. Adults sit on the edges. Seams hold for years. The pool ships flat and sets up fast.

For resorts, event companies, and rental operators, that combination — structural performance plus logistical flexibility — is what makes the investment work. You're not buying an inflatable. You're buying a deployable pool with a commercial lifespan.

If you're ready to spec a unit, or need a custom configuration for your brand, get in touch with the team below.
