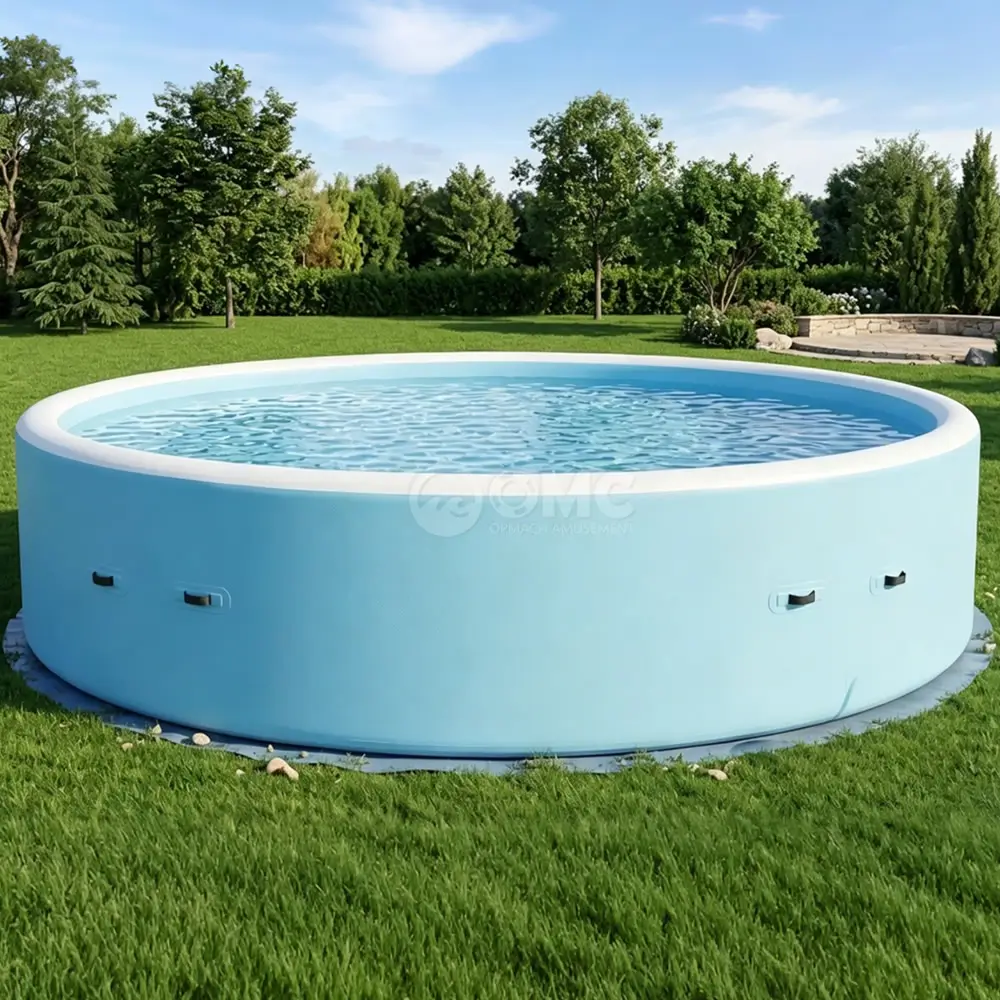

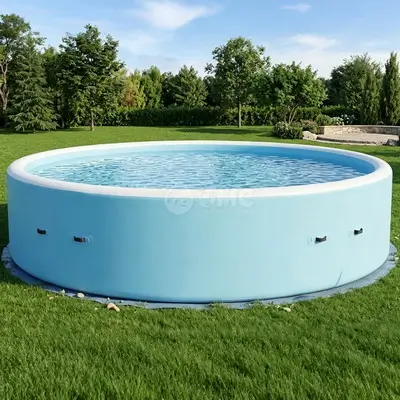

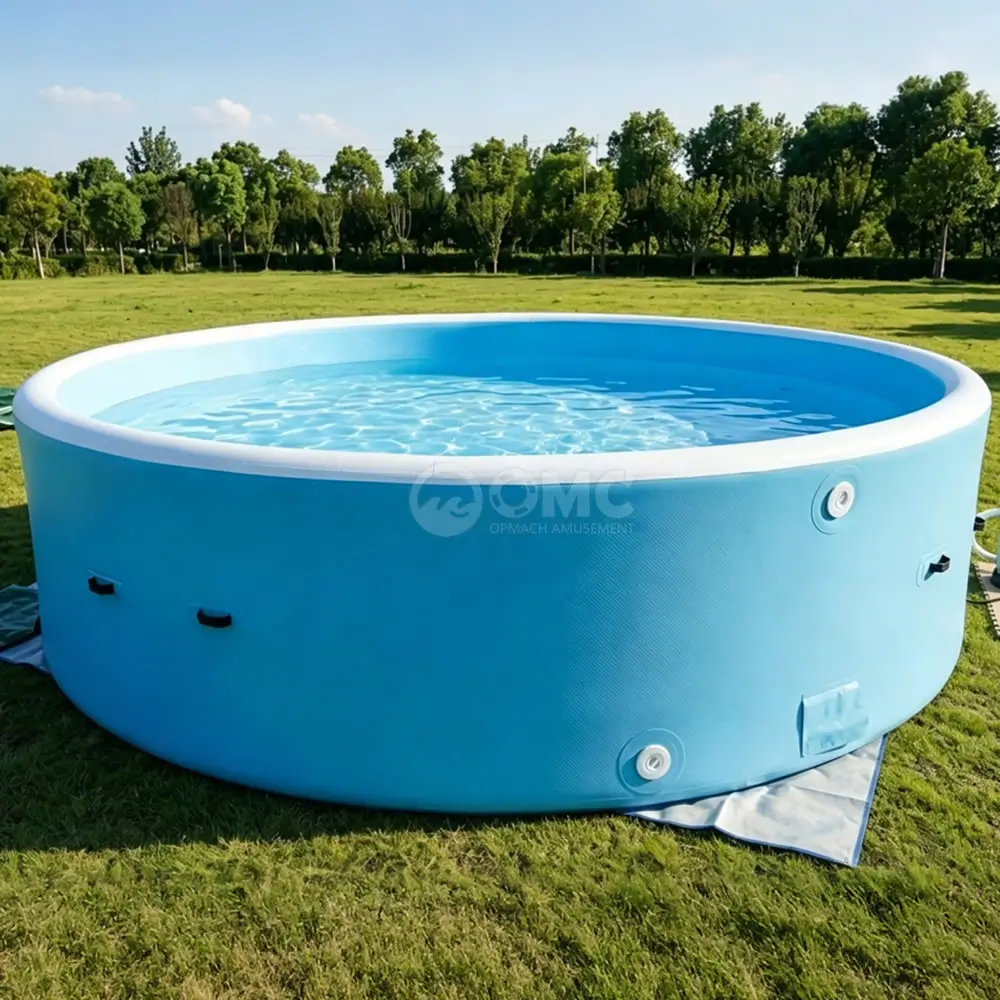

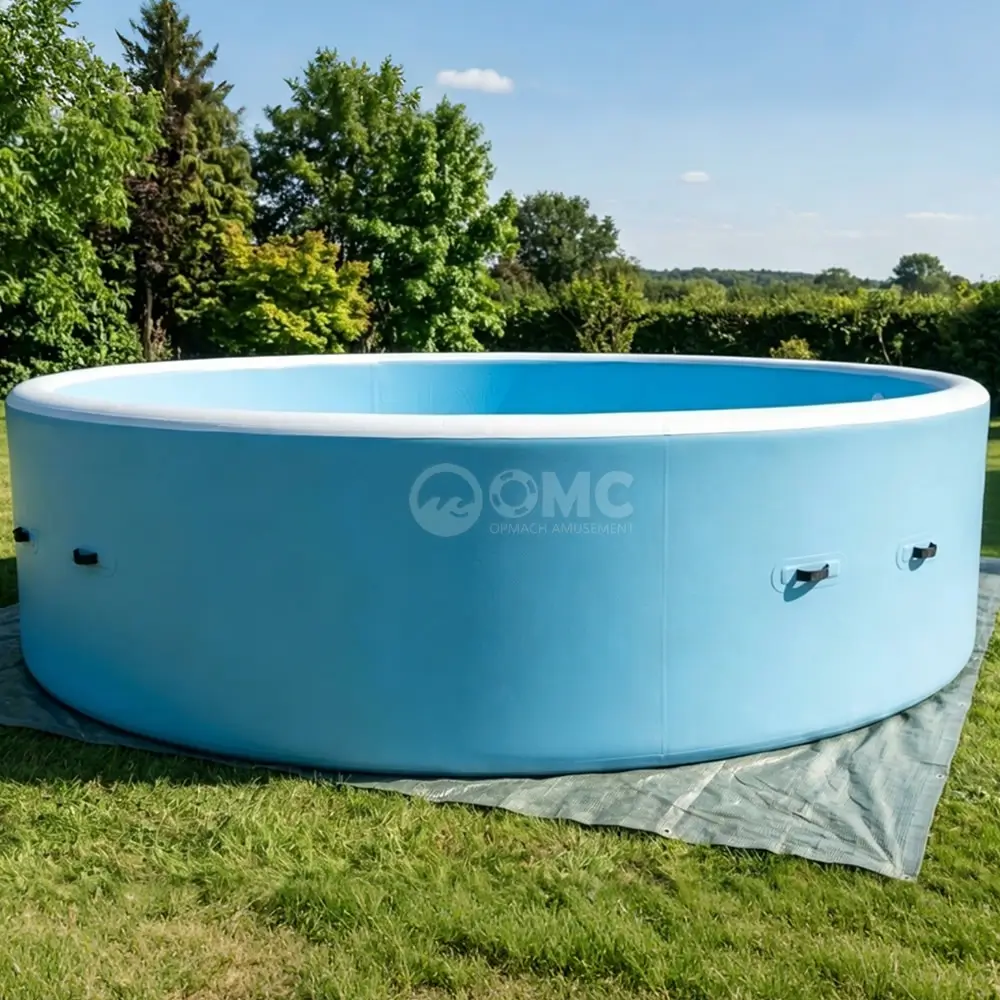

16' 20' 24' Round Drop Stitch Pool (Diameter 5m 6m 7m)
Rigid wall drop stitch pool, built in 5m, 6m and 7m diameters — for backyards, resorts, rental fleets, ice bath centers, and commercial water parks.
We manufacture round drop stitch pools. No steel frame. No long install crew. Just a rigid, self-supporting wall that goes up in under 90 minutes.
Here's the short version: a normal above-ground pool needs a steel skeleton to hold its shape. Our pool doesn't. The wall itself turns rigid once it's pumped up. That's the whole trick behind drop stitch technology — and it's why operators are switching to it.
Inflatable Amusement Product Specialist @ OMC
Recruiting agents worldwide:
💰 Wholesale & Pricing Advantages: As a direct supplier,discounted prices available for wholesale orders.
🚚 Inventory & Delivery: Manufacturers have inventory and provide fast delivery.
🕒 Customer Support: Our company’s customer support staff is online 24 hours a day to provide services.
✨ Customization Services: OEM/ODM support for logo, color, and size (as a professional manufacturer).
🤝 Fill in the information, get a quote, and become our agent!
Product Details
Built to Stand on Its Own
No steel frame required
Rigid wall structure
Portable and foldable
Fast installation
Commercial-grade PVC material
UV resistant
Easy maintenance
OEM branding available
A normal inflatable pool sags. The ring loses air, the wall leans, and the whole thing wobbles when someone leans on it. Ours doesn't do that. Thousands of tiny drop stitch fibers run between the inner and outer PVC layers. Pump the wall to working pressure, and those fibers pull tight. The wall locks straight — it holds its shape under full water load and won't bow even with a crowd inside.
There's no frame to bolt together. No crane, no welding crew, no specialized tools. Two workers can unfold it, pump it, and have it ready in 60 to 90 minutes. That's why rental companies like it: fold it down, move it to the next site, set it up again. Resorts like it because there's no permanent construction. Ice bath centers like it because it drains, folds flat, and stores easily between uses.
Round Pool Size Chart
| Model | Diameter | Height | Water Capacity* | Suggested Users |
|---|---|---|---|---|
| DS-500 | 5m (16ft) | 1.32m | ≈ 23,950 L | 10–15 Persons |
| DS-500H | 5m (16ft) | 1.52m | ≈ 27,880 L | 12–18 Persons |
| DS-600 | 6m (20ft) | 1.32m | ≈ 34,500 L | 15–25 Persons |
| DS-600H | 6m (20ft) | 1.52m | ≈ 40,150 L | 20–30 Persons |
| DS-700 | 7m (24ft) | 1.32m | ≈ 46,950 L | 25–35 Persons |
| DS-700H | 7m (24ft) | 1.52m | ≈ 54,650 L | 30–40 Persons |
*Capacity is measured at a standard fill line, about 10cm below the top edge. Actual volume shifts a bit depending on ground leveling and accessories.
Standard Package
Round Drop Stitch Pool Main pool body, reinforced seams, drop stitch sidewall
High Pressure Electric Pump Gets you to 6–10 PSI fast
Repair Kit PVC patches and adhesive, for field fixes
User Manual Setup, care, and winterizing steps
Want more? Filtration systems, ladders, safety fencing, ground mats, and solar covers are all available. Bundle them with your order or buy them separately.
Setup Steps
01
Prepare Flat Ground
Pick a level spot, clear of rocks and debris. Lay down a ground mat first — it protects the pool floor and adds years to its life.
02
Unfold the Pool
Roll it out where it'll sit. Unfold it all the way. Check for twists or creases before you go further.
03
Inflate the Wall
Hook the pump to the air valve. Inflate to 6–10 PSI. Watch the wall rise and lock into place on its own.
04
Install the Filtration System
Connect the inlet and outlet fittings before you add water. Then your circulation system is ready the moment the pool fills.
05
Fill with Water
Use a garden hose for smaller pools. Use a water truck for faster fills on bigger ones. Fill to the marked line.
06
Ready to Use
Check the wall pressure. Check the water chemistry. Then it's go time.
Setup Time
60–90 Minutes
Required Workers
1–2 Persons
Tools Needed
Included Pump Only
Premium PVC Material
| PVC Thickness | Custom (commercial-grade options available) |
| Fabric Density | Commercial Grade |
| UV Resistance | Yes |
| Waterproof | 100% |
Drop stitch fabric has two PVC layers. Thousands of polyester threads connect them. Pump it up, and it acts like a rigid panel. Let it down, and it folds flat for storage. That's the whole point of the design.
Factory Production Process
01
Material Cutting — PVC panels get cut to your exact diameter and height
02
CNC Positioning — CNC equipment lines up every panel for precision
03
High Frequency Welding — Seams get welded airtight and waterproof
04
Reinforcement Welding — Stress points, like the base-to-wall seam and valve zones, get extra welds
05
Inflation Testing — Every pool gets pumped up and pressure-tested before it leaves the line
06
Quality Inspection — We check dimensions, finish, and overall build quality
07
Packaging — Pools get folded, packed, and labeled for shipping anywhere in the world
Want Your Own Brand on It?
We do full OEM and ODM work for distributors, resorts, and rental fleets that want a branded product, not a generic one.
Size
2m – 7m+
Need a size outside our standard chart? We build custom diameters from 2m up to 7m+, plus custom wall heights.
Color
Custom Pantone Match
Pick your brand colors. We match them using Pantone color references.
Logo
Silk-Screen / UV Print
We print logos two ways: silk-screen or UV print. Both hold up to sun, water, and years of poolside use.
MOQs, lead times, and artwork specs vary by request. Send us your specs, and we'll quote it.
Quality Assurance
100% Inflation Test Every single pool gets inflated and checked. Not a sample batch. Every one.
Leak Inspection We check every seam and valve for air and water leaks.
Pressure Retention Test Pools hold working pressure over time, so you know the wall stays rigid.
Welding Strength Test We pull-test the welds to confirm they handle a full water load.
Common Questions
How long does a drop stitch pool last?
Years, if you treat it right. Install it properly. Keep up basic maintenance. Store it during the off-season. Skip those steps, and UV exposure or rough ground will wear it down faster.
What PSI should a drop stitch pool be inflated to?
6 to 10 PSI. That's the sweet spot — full rigidity, no stress on the seams. Check your model's manual to be sure, since exact ratings can vary.
Can the pool stay outdoors all year?
The PVC handles UV and outdoor weather fine during the swim season. But if you get hard winters, drain it, clean it, fold it, and store it indoors. It'll last a lot longer.
How many people fit in a 5m round pool?
10 to 18 people, depending on the height you pick. The 1.52m version fits more than the 1.32m version.
How many liters of water does a 6m pool hold?
About 34,500 liters at 1.32m height. About 40,150 liters at 1.52m height. Both numbers are based on a standard fill line.
Is OEM logo printing available?
Yes. Silk-screen or UV print, your choice. Either way, your brand goes on the pool, not ours.
